When the volume outgrows the 12 — same build, four more feet
Tap any photo to open the full gallery. Drag or swipe between shots.
The 7×16 is the step up when the 12 fills up. 604 cubic feet — a third more than the 7×12 — rides on the same dual-axle chassis, behind the same front-mounted ARCTIC refrigeration unit, on the same 115V / 20A outlet. You add the length, not a new power bill or a different workflow.

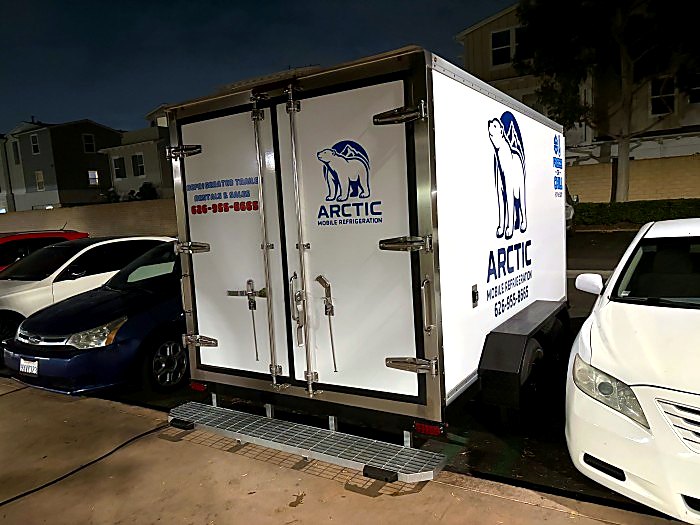

Full-height rear double doors open onto a diamond-plate ramp, and the clear strip curtain lets your crew load and unload all day without dumping the cold air. The shelving package comes standard with rentals but is not part of an outright purchase, and there's no custom interior build-out. The commercial 4-inch insulation and LED lighting, though, are standard on every unit, rented or sold.
What's on the build sheet
| Interior volume | 604 ft³ (17.1 m³) |
|---|---|
| Exterior dimensions | 7 ft wide × 16 ft long |
| Temperature range | −10°F to 50°F, digitally controlled |
| Insulation | Commercial-grade, 4" walls |

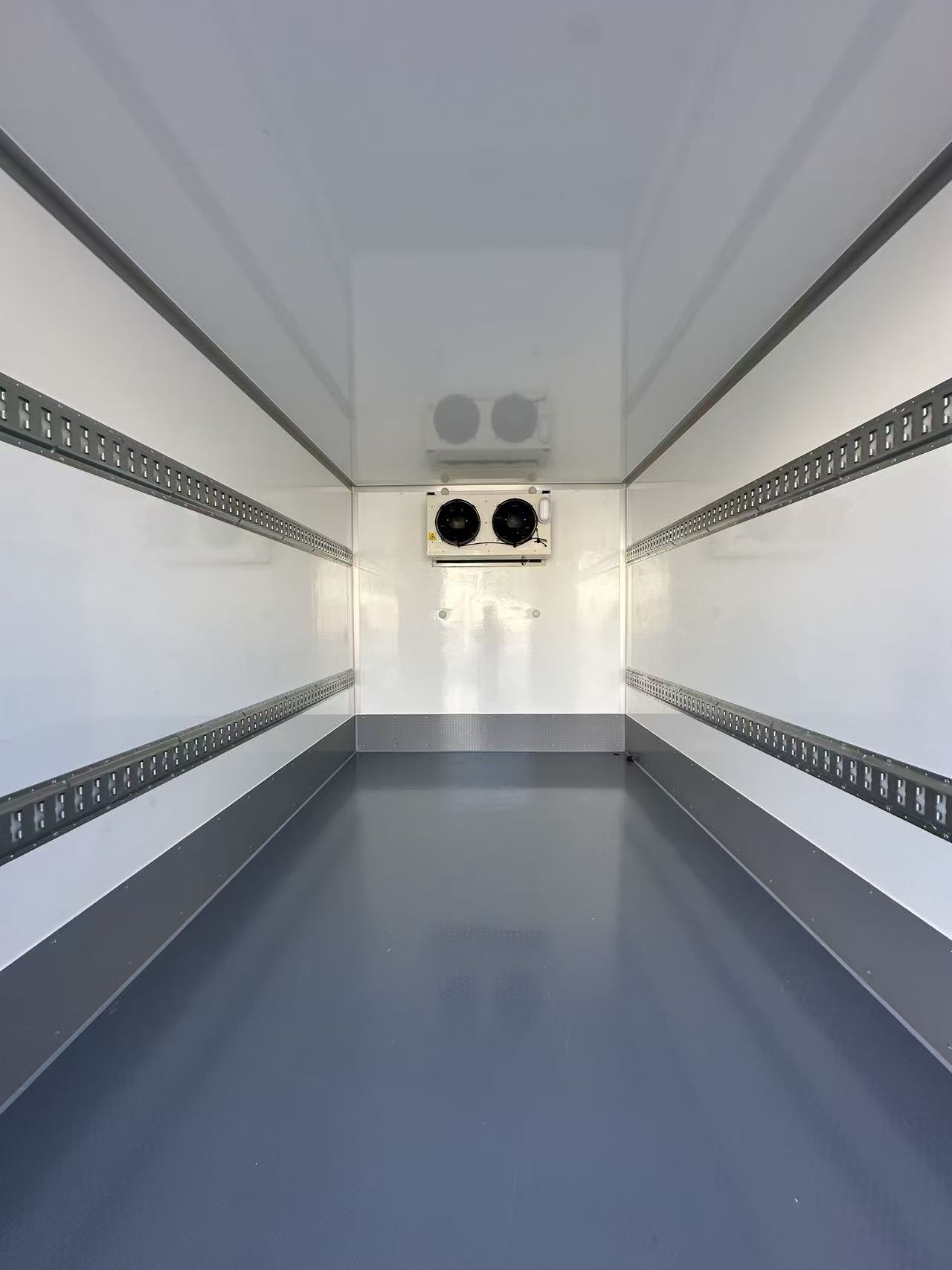

| Interior finish | Washable white FRP panels, aluminum trim |
| Refrigeration unit | ARCTIC front-mounted, integral |
|---|---|
| Power supply | 115V / 20A dedicated outlet recommended |
| Interior lighting | LED |
| Cord & extension | Power cable included; extension options on request |
| Axles | Dual axle with electric brakes |
|---|---|
| Rear access | Full-height double doors, heavy-duty hardware |
| Loading | Diamond-plate ramp, fold-down |
| Door protection | Clear strip curtain across full height |
| Compliance | DOT compliant and road-ready |
Need different dimensions? Custom sizes are available on request. Call 626-955-8665 or email sales@arcticmr.com to talk through your spec.
Everything above is standard. Nothing here is an upsell.
604 ft³ against the 7×12's 453. That is roughly a full extra pallet run per trip, or the difference between a walk-in holding steady and one falling behind on a Friday push.
It needs about sixteen feet plus the tongue — a loading bay, a long side lot, or two parking stalls. Nothing else about your setup changes: same power, same ramp, same crew routine.
The full-height strip curtain lets forklifts and hand trucks pass through while keeping the cold air where it belongs. No propping the doors and paying for it overnight.
115V / 20A. That's a standard dedicated circuit — the kind already in most kitchens, garages, and warehouse walls. No generator, no three-phase hookup, no electrician visit.
Dual axles with electric brakes, DOT compliant and road-ready. Tow it behind a suitable pickup, or let us deliver it and set it up for you.
Every unit is sanitized and inspected between rentals, then plugged in and verified cold before it arrives. You get the trailer, not a project.
Side door and onboard generator are add-on options. Call to check what's on the lot for a rental, or spec them into a purchase.

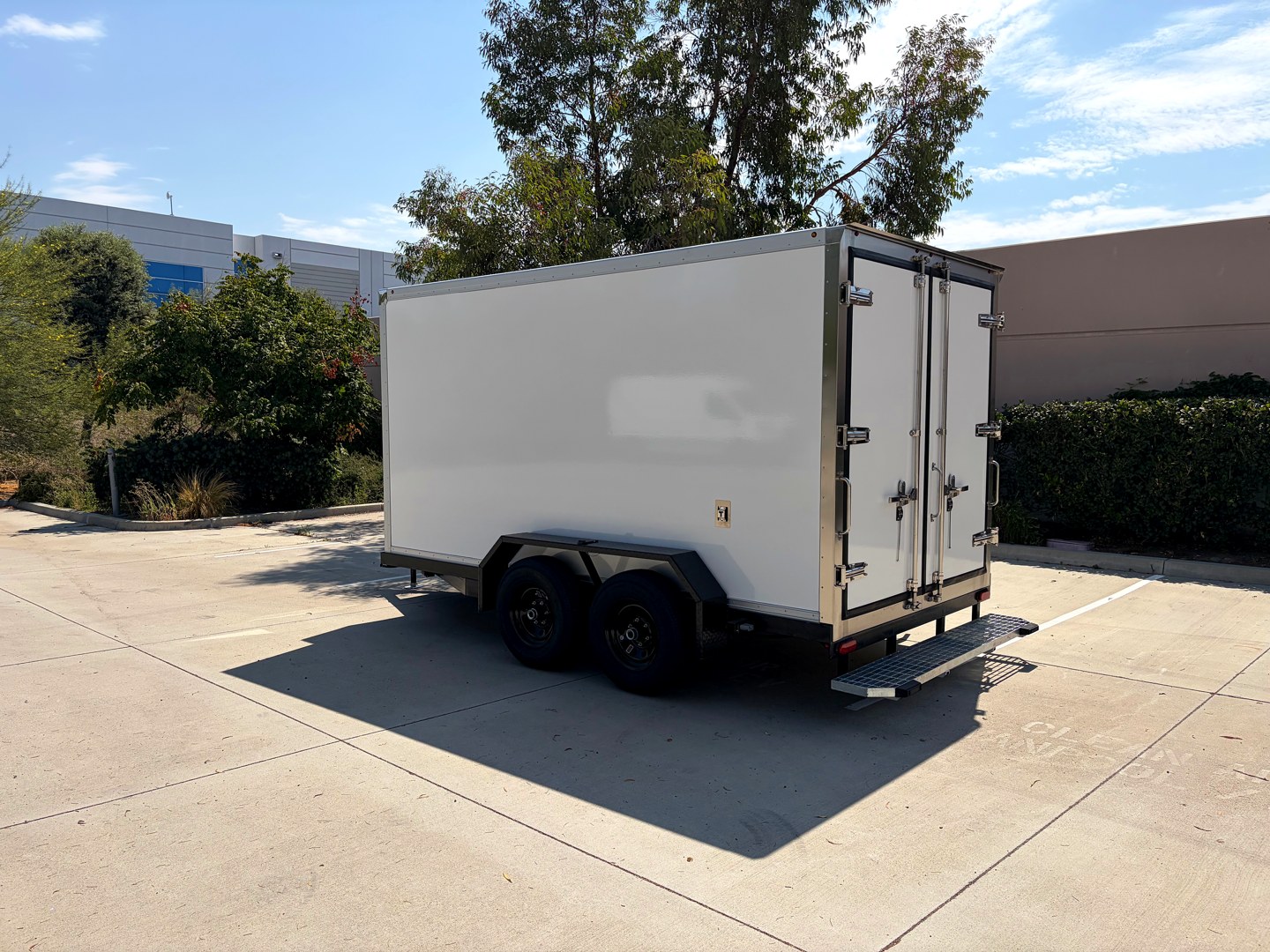

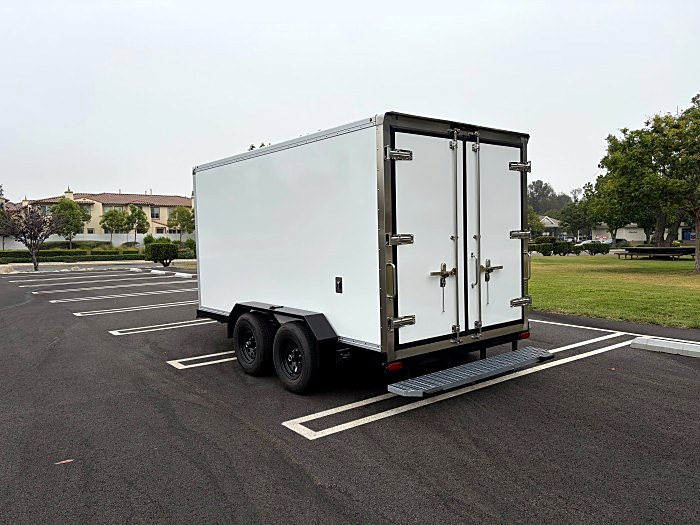

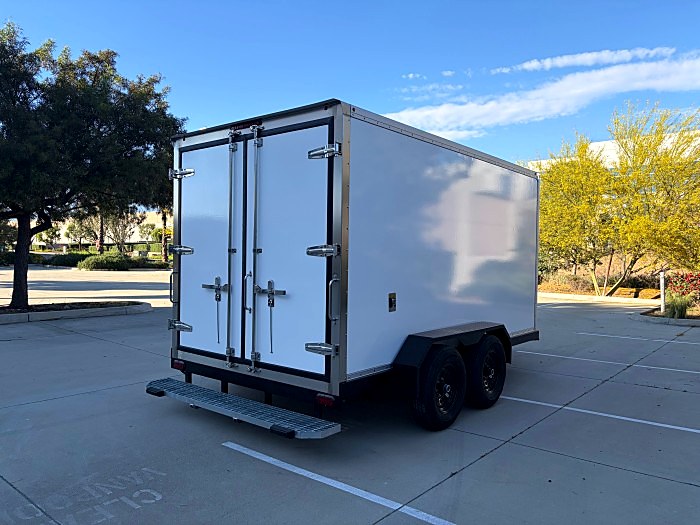

The standard build. Full-height rear double doors, diamond-plate ramp, strip curtain across the doorway.
Standard

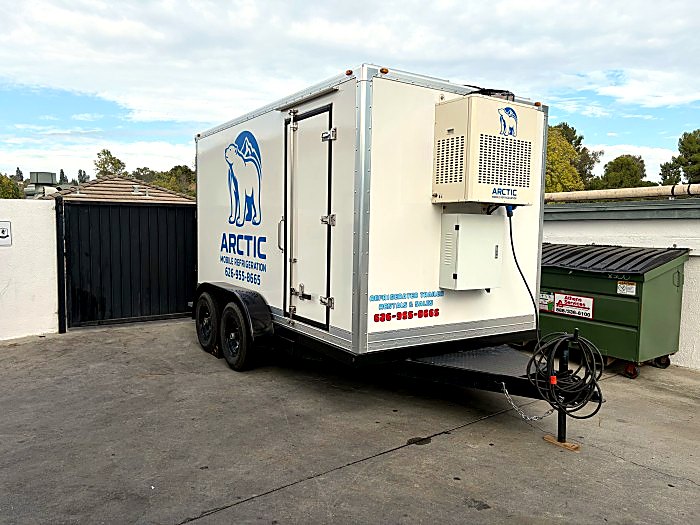

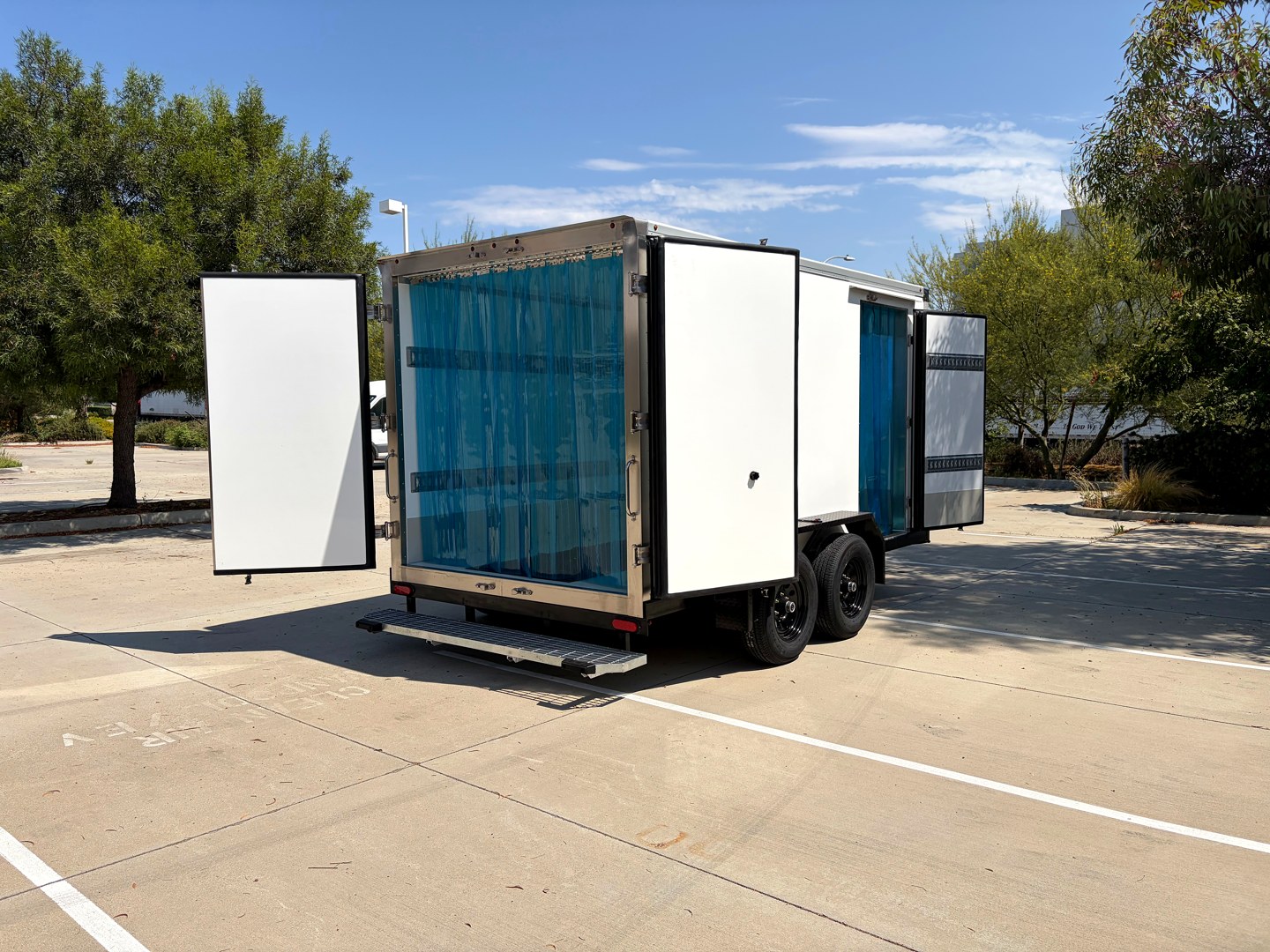

A second full-height door on the curb side, with its own strip curtain. Choose it when the trailer sits against a wall or a narrow alley makes rear-only loading awkward.
Optional — ask us

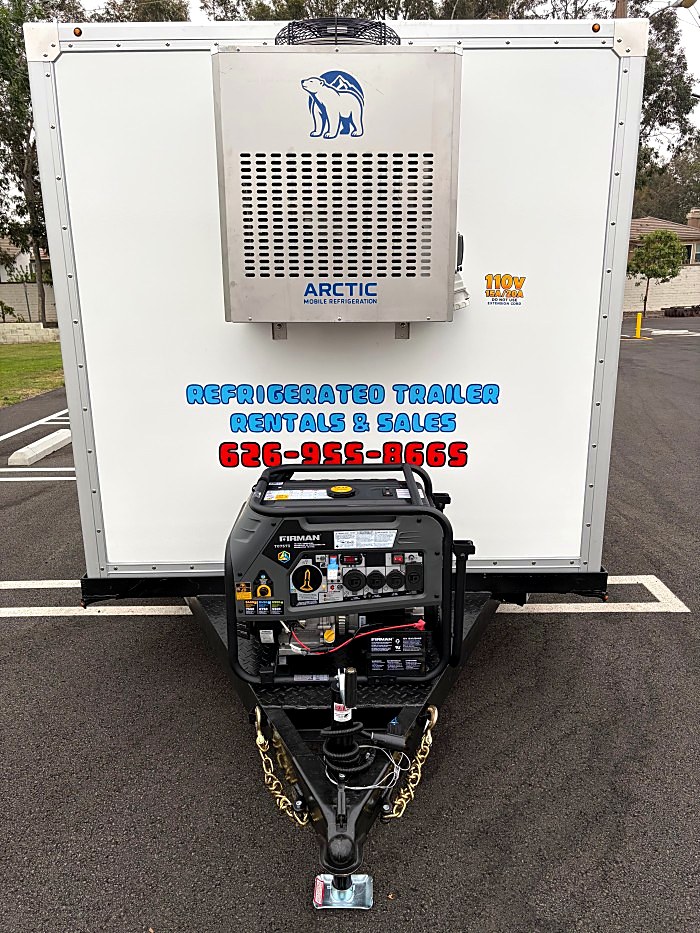

A generator mounted at the tongue runs the refrigeration unit with no shore power. Choose it for remote sites, open lots, and parade routes.
Optional — ask us

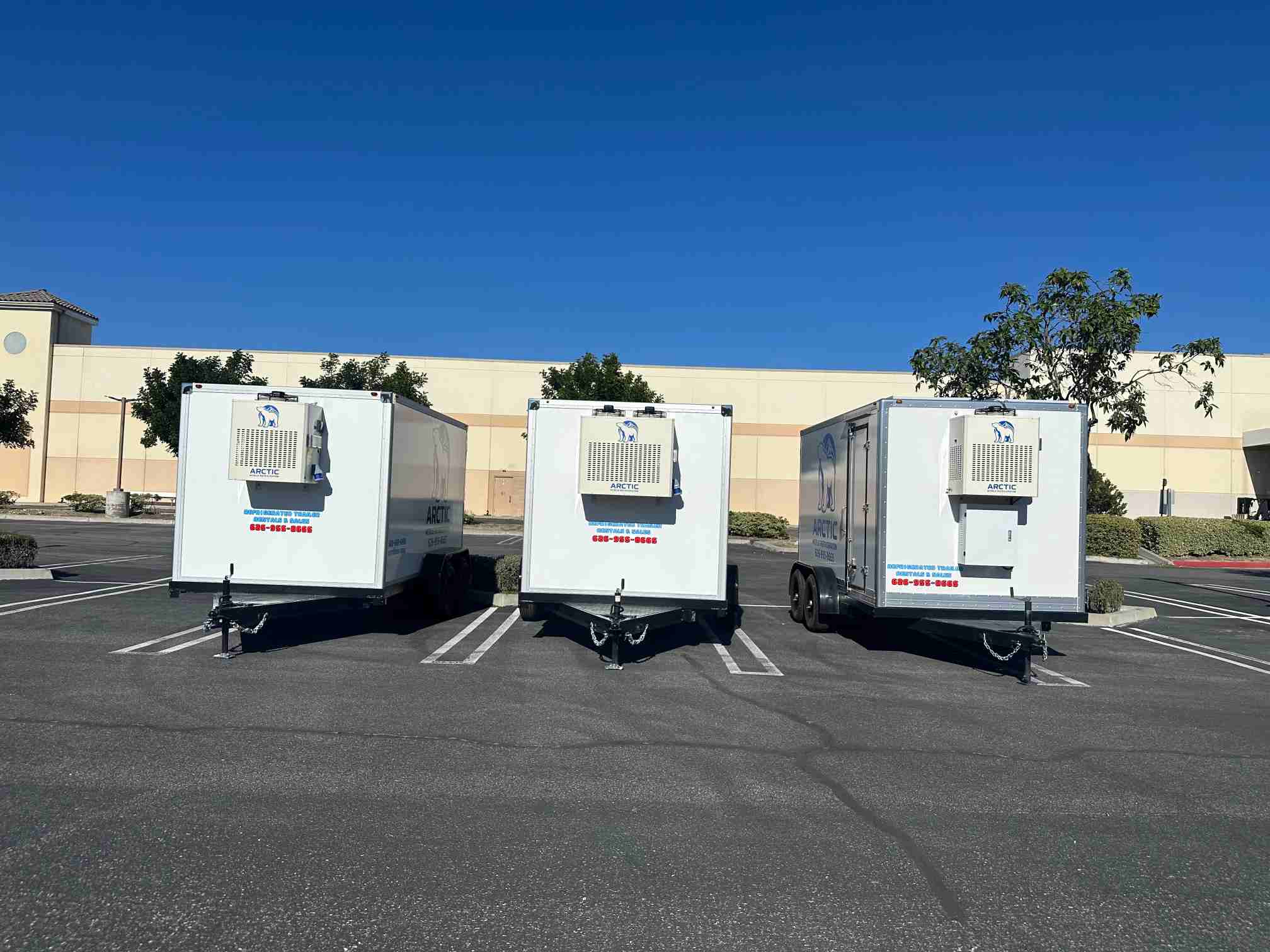

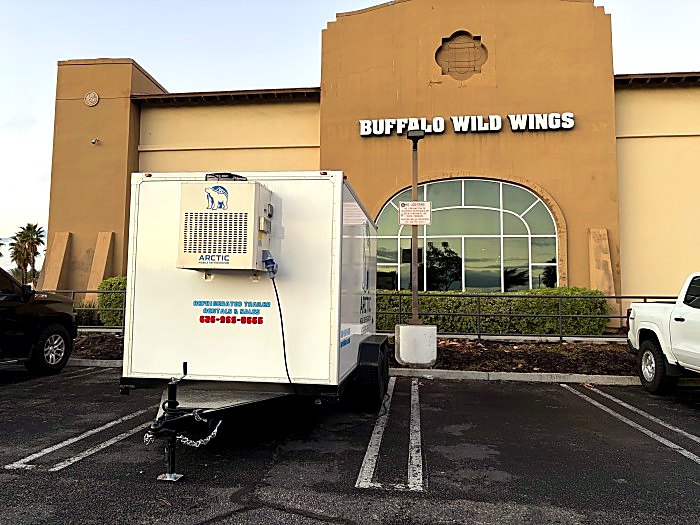

The whole trailer is built around this. A stainless ARCTIC refrigeration unit mounts on the front wall rather than the roof, which keeps the overall height low enough for a standard garage door and puts the controls at chest height where your crew can actually reach them.
No roof-mounted condenser means nothing to snag on low clearances, and the entire 604 ft³ box stays square and usable — no evaporator housing eating into your shelf run.
Same build, same power, same options — the difference is length and volume.
If the volume is the problem, this is the size.

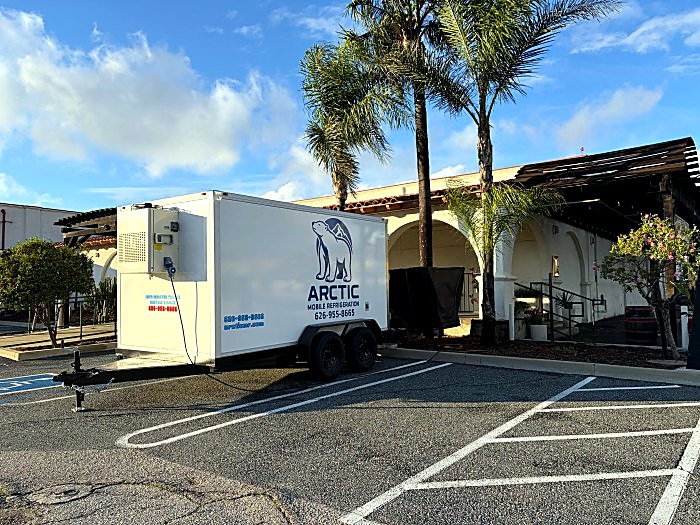

Multi-day festivals, weddings with big guest lists, and corporate functions where one cold box has to carry the whole menu.
Right size
Seasonal overflow, planned maintenance windows, and capacity gaps that a fixed walk-in can't absorb.
Right size
Multi-unit operators and working caterers who need one trailer to hold several days of inventory at once.
Right size
When a large walk-in fails and the inventory is too valuable to squeeze into a smaller unit. Same-day delivery is often available.
Right size
Thanksgiving through New Year, floral holidays, summer produce pushes — the weeks when fixed cold storage runs out of room.
Right size
Film shoots, street fairs, and rotating job sites — one trailer that moves with the production.
Tight site? See the 7×12Tell us your dates, your address, and the outlet you have available. We'll confirm delivery, power, and placement.
